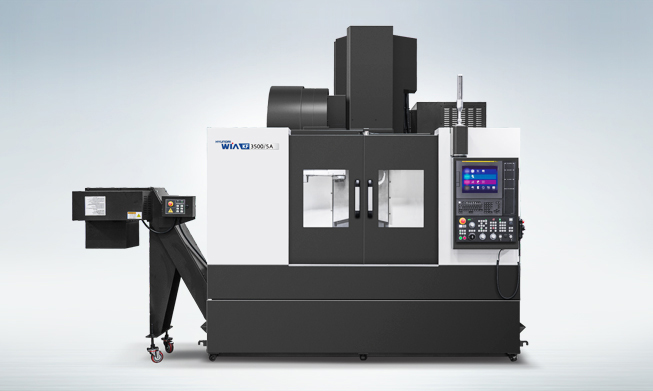

KF3500 / 5A
- A/C axis high rigidity roller gear cam drive method applied
- Vastly superior in power delivery efficiency and strength compared to worm gear of other companies
- Rapid traverse rate of A axis 30rpm and C axis 40rpm
- High-speed 12,000rpm spindle (Opt. 15,000/20,000rpm)
- High-speed tool change time (C-C) 3.4 sec
- High-speed roller type LM guide in all axes
- Convenient work loading through crane with top cover featuring open structure
- Compact design suitable for installation in restricted space (6.5㎡)
- Applying the latest controller of FANUC 0i PLUS
Machine Specifications
| Description | Unit | KF3500/5A |
|---|---|---|
| Table Size | mm | 350 |
| Max. Load Capacity | kg | 250 |
| Spindle Driving Method | - | Direct |
| Spindle Taper | - | BBT40 |
| Spindle RPM | r/min | 12,000 |
| Spindle Power | kW | 18.5/11 |
| Spindle Torque | N.m | 118/52.5 |
| Travel(X/Y/Z) | mm | 600/655/500 |
| Rapid Feed Rate(X/Y/Z) | m/min | 36/36/30 |
| Slide Type | - | LM |
| No. of Tools | EA | 30 |
| Tool Change Time (Chip To Chip) |
sec | 3.4 |
